以呈纏繞在管材中分布的高強度鋼絲為增強骨架，其內外層以高密度聚乙烯為基體，并通過熱熔膠復合經連續擠出成型的新型環保管材。其中，給水用管材、管件代號L；燃?xì)庥霉懿?、管件代號Q；特種流體用管材、管件代號T。 |

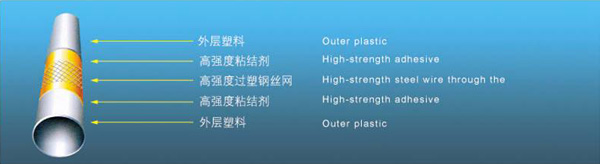

Make the high strength steel mesh which is entwining and distributing aroud pipe as the reinforce framework,based on the high density polyethylene on the exterior,in combination with hot melting adhesive,through successive extrusion molding,to form the new environment-friendly pipe.Hereinto,L is used for the code name of water supply pipe and pipe fittings;Q is used for the code name of fuel gas pipe and pipe fittings:T is used for the code name of special fluid pipe and pipe fittings. |
1、強度高、抗沖擊性強；
2、防腐蝕，導熱系數低；
3、內壁光滑、不結垢、水頭損失?。?br />
4、重量輕、施工方便、性能可靠；
5、衛生無毒，使用壽命可達50年。 |
1.Hith strength,strong impact resistance;
2.Anticorrosion,low thermal conductivity;
3.Smooth interior wall ,no scaling formation,small head loss of flow transporting;
4.Light in weight,it is convenient for construction;high reliable performance;
5.Heath,no toxicity,using life is over 50 years. |
公稱外徑mm
Nominal diameter |
50 |
63 |
75 |
90 |
110 |
140 |
160 |
200 |
225 |
250 |
315 |
355 |
400 |
450 |
500 |
560 |
630 |
鋼絲最小直徑mm
Minimum diameter wire |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
1.0 |
1.0 |
公稱壓力(MPa)
Nominal pressure |
0.4-3.5 |
|
電熱熔連接
Electric hot-melt Connection |
 |
法蘭連接
Flanged |
 |
|
產品廣泛應用于化工、油田、礦山、碼頭、紡織、市政，有色金屬冶煉，農業灌溉、造船、海水輸送，熱電工程的回水、廢渣輸送，埋地排水管、電纜導管等。 |
Our products are widely applicable for chemical industry,oilfield,mine,wharf,textile,municipal construction,non-ferrous metal smelting,agricultural irrigation,shipbuilding,seawater transporting,backwater pipes for thermal engineering,waste residue transporting,per-buried drainage pipes,guide pipes for power cable. |
